Quality Microwave Components

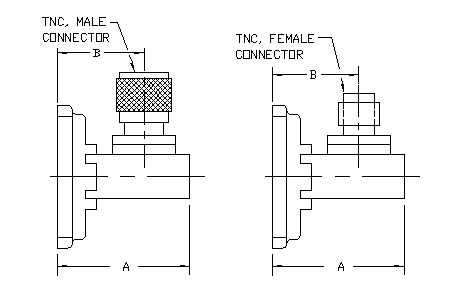

Waveguide to Coaxial Adapters Type TNC

  These waveguide to TNC transitions offer the system designer a convenient reliable answer to specialized needs.  Numerous options are available.  Call Waveline to discuss your special requirements.  Alternate materials and flanges are available.  See flange section.  Finish is instrument gray enamel.

WG
Size		 Frequency
Range, GHz		 Equivalent
Flange Type		 WG
Mtl.		 VSWR
Max.		 Power
Watts		 Inches
Female
A		 Inches
Female
B		 Inches
Male
A		 Inches
Male
B		 Model#
Female		 Model#
Male
WR-430 1.70 to 2.60 CPR-430
Flat		 AL 1.25 100 6.00 4.25  -  - 4301-TNCF 4301-TNCM
WR-284 2.60 to 3.95 UG-584/U Cover AL 1.25 100 2.78 1.98 2.78 1.98 201-TNCF 201-TNCM
WR-229 3.30 to 4.90 CMR-229 Style BR 1.25 100 2.50 1.75 3.00 1.94 2901-TNCF 2901-TNCM
WR-187 3.95 to 5.85 UG-407/U Cover AL 1.25 100 2.38 1.68 2.38 1.68 301-TNCF 301-TNCM
WR-159 4.90 to 7.05 CMR-159 Style AL 1.25 100 2.38 1.68 2.38 1.68 5901-TNCF 5901-TNCM
WR-137 5.85 to 8.20 UG-441/U Cover AL 1.25 100 2.00 1.60 2.00 1.56 401-TNCF 401-TNCM
WR-112 7.05 to 10.0 UG-138/U Cover AL 1.25 100 1.75 1.22 1.81 1.33 501-TNCF 501-TNCM
WR-102 7.00 to 11.0 WR-102 Cover AL 1.25 100 2.00 1.47 2.00 1.47 0201-TNCF 0201-TNCM
WR-90 8.20 to 12.4 UG-135/U Cover AL 1.15 100 1.38 1.00 1.38 1.00 601-TNCF 601-TNCM
WR-75 10.0 to 15.0 WR-75 Cover AL 1.40 75 1.38 1.00  -  - 7501-TNCF -
WR-62 12.4 to 18.0 UG-1665/U Cover AL 1.40 75 1.75 1.25 1.75 1.25 701-TNCF 701-TNCM
WR-51 15.0 to 22.0 WR-51 Cover BR 1.50 50 1.67 1.12  -  - 5101-TNCF -

Please call if you need any further assistance or information.
