Waveguide
Elbows 60 Deg.
1.70 to 50.0 GHz
|
|
|
1.70 to 50.0 GHz |
Waveguide Elbows 60 Deg.
These 60 degree elbows are constructed with precision MIL specification waveguide accurately formed to a constant radius in both E and H planes. Internal dimensions are carefully maintained. VSWR is 1.10 maximum over the full waveguide frequency range. Alternate materials and flanges are available. See flange section. Finish is instrument gray enamel.
Important ordering information: Add -1 to model number for choke - choke. Add -2 to model number for cover - cove. i.e.: Model number 628-1 is a 60 degree E plane elbow assembly with choke flanges for WR-90 waveguide.
| WG Size |
Frequency Range, GHz |
Flange #1 |
Flange #2 |
WG Mtl. |
Bend Plane |

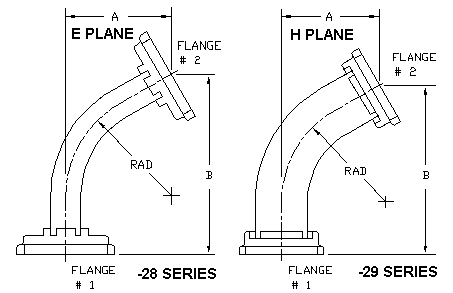

Inches A |
Inches B |
Inches Rad. |
Model No. |
| WR-430 | 1.70 to 2.60 | CPR-430 Flat | CPR-430 Flat | AL | E H |
5.63 5.81 |
9.75 9.00 |
7.16 8.25 |
4328 4329 |
| WR-284 | 2.60 to 3.95 | UG-584/U Cover | UG-585A/U Choke | AL | E H |
2.69 3.06 |
4.63 5.29 |
2.75 3.50 |
228 229 |
| WR-229 | 3.30 to 4.90 | CMR-229 Style | CMR-229 Style | AL | E H |
2.38 2.70 |
4.14 4.69 |
2.63 3.21 |
2928 2929 |
| WR-187 | 3.95 to 5.85 | UG-407/U Cover | UG-406B/U Choke | AL | E H |
2.13 2.38 |
3.66 4.09 |
2.50 3.00 |
328 329 |
| WR-159 | 4.90 to 7.05 | CMR-159 Style | CMR-159 Style | AL | E H |
2.00 1.94 |
3.50 3.38 |
3.47 3.36 |
5928 5929 |
| WR-137 | 5.85 to 8.20 | UG-441/U Cover | UG-440B/U Choke | AL | E H |
1.56 1.75 |
2.69 3.00 |
1.38 1.75 |
428 429 |
| WR-112 | 7.05 to 10.0 | UG-138/U Cover | UG-137-B/U Choke | AL | E H |
1.50 1.69 |
2.63 2.91 |
1.31 1.63 |
528 529 |
| WR-102 | 7.00 to 11.0 | WR-102 Cover | WR-102 Choke | AL | E H |
1.50 1.69 |
3.63 2.91 |
1.75 2.00 |
0228 0229 |
| WR-90 | 8.20 to 12.4 | UG-135/U Cover | UG-136B/U Choke | AL | E H |
1.75 1.88 |
3.00 3.25 |
1.50 1.63 |
628 629 |
| WR-75 | 10.0 to 15.0 | WR-75 Cover | WR75 AL Choke | AL | E H |
1.44 1.47 |
2.50 2.53 |
1.19 1.35 |
7528 7529 |
| WR-62 | 12.4 to 18.0 | UG-1665/U Cover | UG1666/U Choke | AL | E H |
1.03 1.09 |
1.78 1.91 |
1.00 1.06 |
728 729 |
| WR-51 | 15.0 to 22.0 | WR-51 Cover | WR-51 Choke | AL | E H |
.94 .94 |
1.63 1.63 |
.88 1.00 |
5128 5129 |
| WR-42 | 18.0 to 26.5 | UG-595/U Cover | UG-596/U Choke | BR | E H |
.88 .94 |
1.50 1.63 |
.88 .94 |
828 829 |
| WR-28 | 26.5 to 40.0 | UG-599/U Cover | UG-600A/U Choke | BR | E H |
.69 .75 |
1.22 1.28 |
.88 .94 |
1028 1029 |
| WR-22 | 33.0 to 50.0 | WR-22 Rd. Cover.. | WR-22 Rd. Cover.. | BR | E H |
.75 .75 |
1.31 .94 |
1128 1129 |
|
Please call if you need any further assistance or information. |
|
