MINIATURE VARIABLE COAXIAL ATTENUATORS
These miniature attenuators offer compact
solutions to manual level set attenuator requirements for system and
instrumentation use. They provide continuously adjustable attenuation over
broad frequency ranges with low insertion loss and a high power capability.
They are available with type N or SMA connectors. Complete
specifications are shown in the table. The attenuators can be customized
to meet special requirements. The body is aluminum with an instrument gray
enamel finish.
General Specifications:
Attenuation Range..............................0 to 30 dB
Low Insertion Loss................................<0.5 dB
Low VSWR.......................................1.5:1 max.
Power Capacity............................Up to 5 Watts

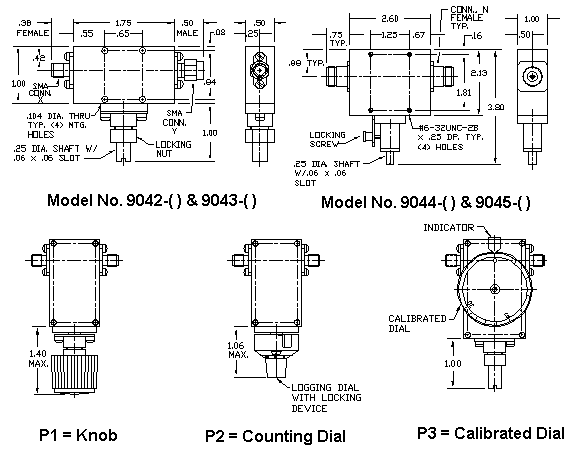

| Frequency Range GHz |
Attenuation Range dB |
Insertion Loss dB (max.) |
Power CW (W) |
SMA Connector X |
SMA Connector Y |
Model No. |
N Connector X |
N Connector Y |
Model No. |
| 2.00 to 4.00 | 0 to 15 | 0.5 | 4 | Male | Male | 9042-1 | - | - | - |
| Female | Female | 9042-2 | - | - | - | ||||
| Male | Female | 9042-3 | - | - | - | ||||
| Female | Male | 9042-4 | - | - | - | ||||
| 2.00 to 4.00 | 0 to 25 | 0.5 | 4 | - | - | - | Male | Male | 9044-1 |
| - | - | - | Female | Female | 9044-2 | ||||
| - | - | - | Male | Female | 9044-3 | ||||
| - | - | - | Female | Male | 9044-4 | ||||
| 4.00 to 8.00 | 0 to 30 | 0.5 | 4 | Male | Male | 9043-1 | Male | Male | 9045-1 |
| Female | Female | 9043-2 | Female | Female | 9045-2 | ||||
| Male | Female | 9043-3 | Male | Female | 9045-3 | ||||
| Female | Male | 9043-4 | Female | Male | 9045-4 |
| Frequency Range GHz |
Attenuation Range dB |
Insertion Loss dB (Max.) |
Power CW (W) |
SMA Connector X |
SMA Connector Y |
Model No. |
Inches A |
Inches B |
Inches C |
Inches D |
| 4.00 to 12.00 | 0 to 30 | 0.5 | 5 | Male | Male | 9041-1 9041-2 9041-3 9041-4 |
1.25 | 2.00 | 1.093 | 1.843 |
| Female | Female | |||||||||
| Male | Female | |||||||||
| Female | Male | |||||||||
| 12.00 to 18.00 | 0 to 30 | 0.5 | 1 | Male | Male | 9040-1 9040-2 9040-3 9040-4 |
1.00 | 1.75 | .843 | 1.593 |
| Female | Female | |||||||||
| Male | Female | |||||||||
| Female | Male |
|
Please call if you need any further assistance or information. |
|
